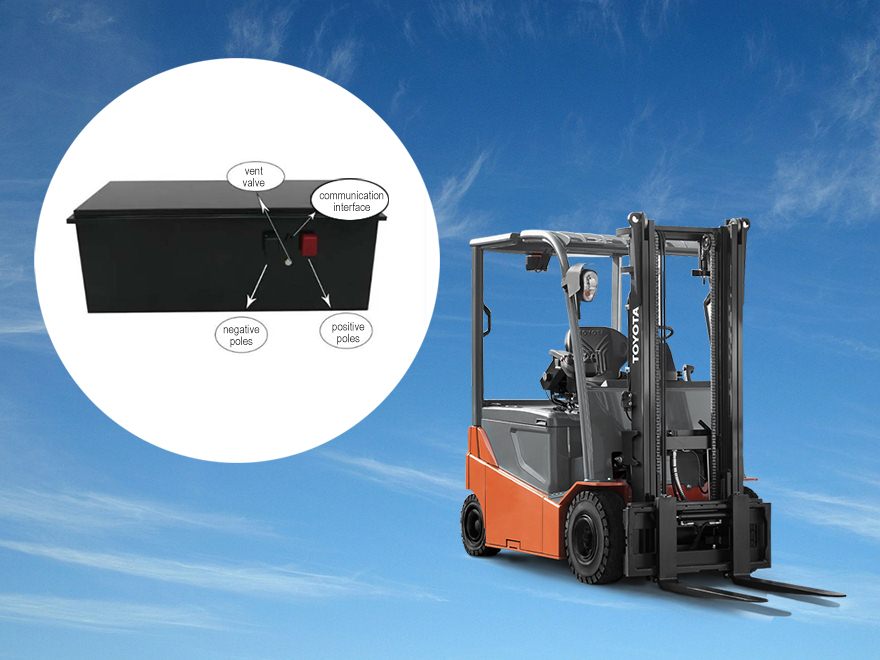

60V 260Ah LiFePO4 Forklift battery

Used as DC power sources for equipment such as forklifts, tractors, handling trucks, and underground mining locomotives, and are widely used in airports, stations, ports, vegetable and fruit markets, as well as industrial and mining enterprise warehouses.

Nominal capacity: 260Ah

Rated voltage: 64V

EqPb (Equals Lead acid battery): 312Ah

Communication mode: CAN/RS485/Blue Tooth(Optional)

Charge method: CC/CV

Send Email:

Products DETAILS

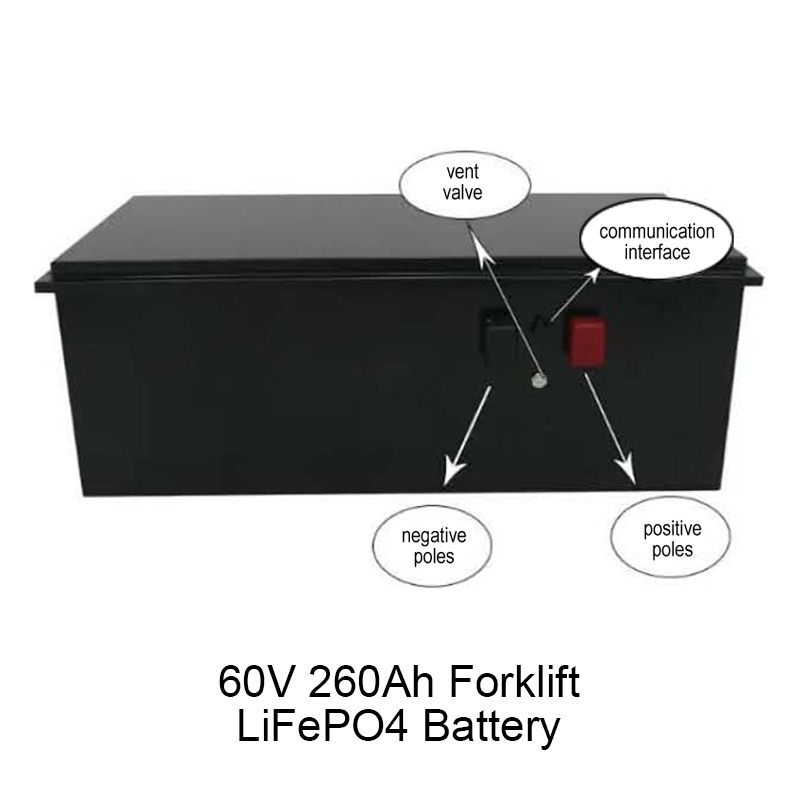

60V 260Ah LiFePO4 Forklift battery


Electrical Specification:
Nominal capacity: 260Ah
Rated voltage: 64V
Self-discharge: <3% per month
Cycle life: >2000 (at 1C discharge, 100% DoD)
EqPb (Equals Lead acid battery): 312Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 73V max
Maximum continuous charging current: 130A
Continuous discharge current: 260A
Discharge peak current: 720A

Mechanical Specification:
Dimensions (LxWxH): customized design
Weight: customized design
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 20S1P/20S2P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
