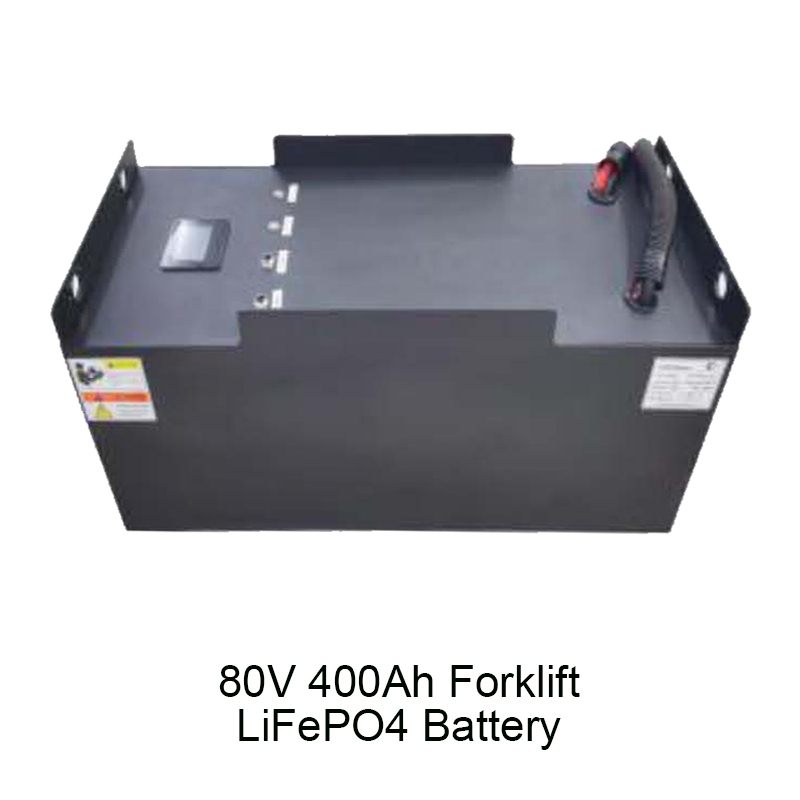

80V 400Ah LiFePO4 Forklift battery

Electrical Specification:
Nominal capacity: 400Ah
Rated voltage: 80V
Self-discharge: <3% per month
Cycle life: >2000 (at 0.5C discharge, 25°C)
EqPb (Equals Lead acid battery): 480Ah
Communication mode: CAN/RS485 (Optional)

Charge & Discharge Specification:
Charge method: CC/CV
Charge voltage: 91.25V max
Maximum continuous charging current: 200A
Continuous discharge current: 400A
Discharge peak current: 800A

Mechanical Specification:
Dimensions (LxWxH): 1030*530*800mm (or customized design)
Weight: 420 kg / 925lbs (or customized design)
Case material: Commercial Grade Steel
Ingress protection: IP65
Cell type / Chemistry:  Prismatic – LiFePO4
Group mode: 25S3P

Temperature Specification:
Charge temperature:  0°C to 50°C / 32°F to 131°F
Discharge temperature:  -20°C to 55°C / -4°F to 131°F
Storage temperature:  0°C to 40°C / 32°F to 113°F
Preheating temperature: -20°C to 5°C / -4°F to 41°F
